Whirlpool Washer Not Draining: Causes, Error Codes and Fixes

A Whirlpool washer not draining leaves you with a drum full of standing water and a load of soaking laundry. The cycle either stops partway through or completes while the water never leaves. On Whirlpool machines the cause is usually mechanical and often something you can find yourself, provided you drain the water safely first.

Short version: a blocked drain pump, a trapped object in the pump housing, or a kinked drain hose account for most of these faults. On top-loaders a failed lid lock will also stop the drain and spin, because the machine refuses to proceed until it believes the lid is secured.

Before you start: get the water out safely

Switch the machine off at the wall. Put a shallow tray and towels down, then lower the drain hose below the level of the drum and let gravity empty it into a bucket. On front-loaders there is usually a small drain tube behind the filter access panel at the bottom of the machine.

Never open a front-loader door with water still standing in the drum, and never open the pump filter without draining first. You will empty the entire tub across the floor.

1. Blocked drain pump or filter

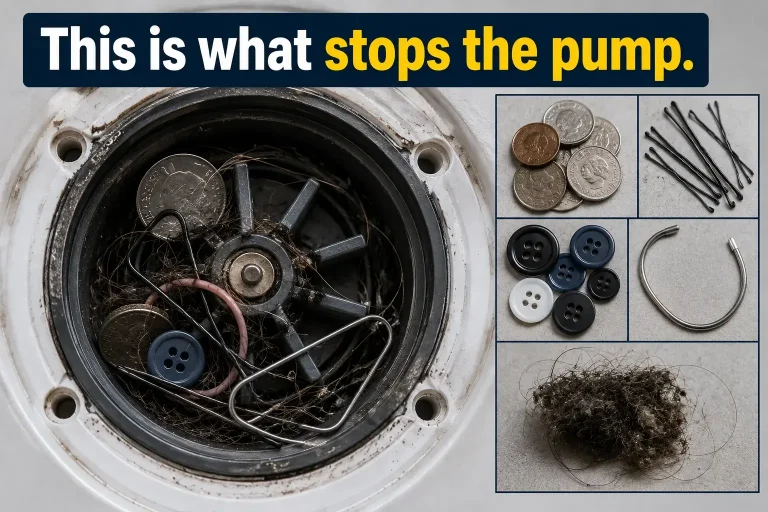

This is the most common cause by a wide margin. Coins, hair grips, buttons, screws and pet hair collect in the pump housing and jam the impeller.

On front-loading Whirlpool machines the filter is behind a small panel at the bottom front. On top-loaders the pump is usually reached from underneath or behind the front panel. With the machine unplugged, clear any debris and check the impeller turns freely by hand. If it is seized or the vanes are broken, the pump needs replacing.

2. Kinked, blocked or badly routed drain hose

Pull the machine out and look at the full run of the drain hose. Kinks behind the appliance are extremely common after a machine has been pushed back into place.

The standpipe height matters too. If the drain hose sits too low, the machine can siphon and never fully empty. If it is pushed too far into the standpipe, it can form an airlock. Also check the standpipe itself for a lint blockage, which is easy to overlook because the fault looks like it sits inside the washer.

3. Failed lid lock or door interlock

On Whirlpool top-loaders the machine will not drain or spin unless the lid lock confirms the lid is secured. When the lock fails, the wash cycle runs and then simply stops with water in the drum.

The tell is a cycle that always halts at the same point, often with a click from the lock area or an error on the display. On front-loaders the door interlock does the same job and produces the same symptom.

4. Error codes worth knowing

F9 E1 is the long drain fault, meaning the machine tried to drain and the water did not leave in the expected time. That points at the pump, the filter or the hose rather than at the electronics.

F8 E1 or LO FL relates to water inlet rather than drain. dL or LID indicates a lid lock fault. Codes narrow the search usefully but they do not name the broken part, so treat them as a starting point rather than a diagnosis.

5. Faulty pressure switch or water level sensor

The pressure switch tells the control board how much water is in the tub. When it fails or its air hose becomes blocked, the board can believe the drum is already empty and skip the drain phase entirely.

The signature here is a machine that behaves perfectly except that it never attempts to drain at all, with no pump noise whatsoever. If you can hear the pump running but the water is not moving, the fault is mechanical instead.

6. Failed drain pump motor

If the filter is clear, the hose is unobstructed and the impeller spins freely but nothing happens on a drain cycle, the pump motor itself has probably failed. Sometimes you will hear a hum without movement, which usually means a seized motor.

Pumps are a mid-range part and a common wear item on machines past about five years of regular use.
