Maytag Dryer Not Heating: Causes and Complete Troubleshooting Guide
A Maytag dryer not heating follows a familiar pattern: the drum turns, the cycle runs its full length, and the laundry comes out damp or cold. Maytag has shared a platform with Whirlpool for years, so the heating circuit and the parts inside it are close cousins, and the diagnostic order is largely the same.
Short version: on electric Maytag dryers the thermal cut-off kit, the heating element and a half-dead 240V supply cover most no-heat faults. On gas models it is the igniter or the valve coils. Restricted airflow is what causes most of these parts to fail in the first place.
Clear the vent before diagnosing anything
Empty the lint filter, disconnect the exhaust duct from the back of the machine and check for a compacted lint plug, then confirm the exterior flap opens while the dryer is running.
Maytag places its thermal fuse and cut-off on the blower housing and heater can specifically so they trip when airflow drops. Fitting new parts without clearing the duct guarantees a repeat failure.
1. Only one leg of the power supply is live
Electric Maytag dryers use 240V delivered as two 120V legs. The motor, light and controls run from one leg; the heater runs from the other. If one leg drops out, the dryer tumbles perfectly and never produces heat, which is the single most misdiagnosed fault on these machines.
Switch the double-pole breaker fully off and back on rather than trusting how the handle looks, because one side can trip while it still appears set. In older Denton homes with a fuse panel, check both cartridge fuses.

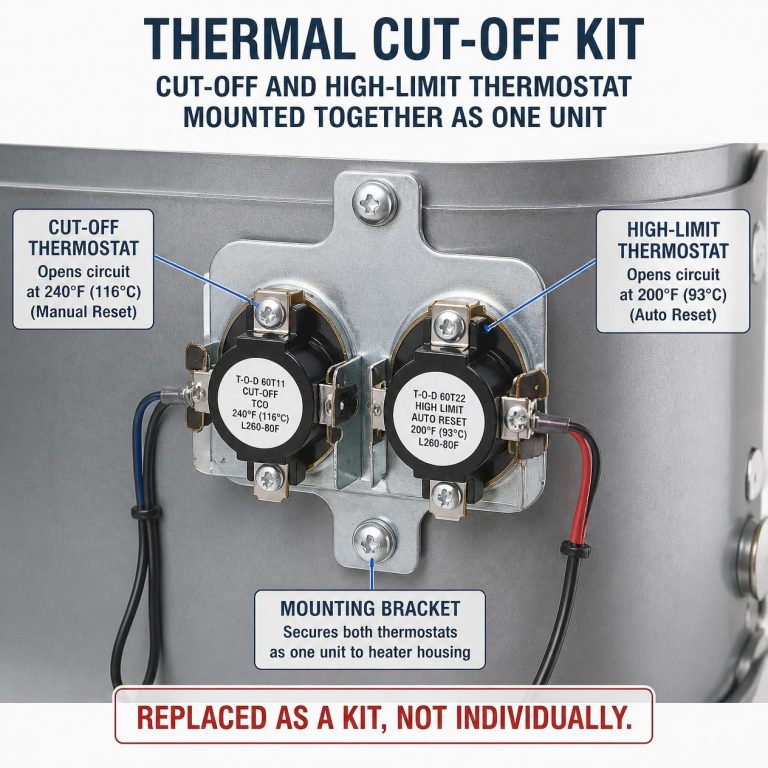

2. Blown thermal cut-off kit
Maytag commonly supplies the thermal cut-off and high-limit thermostat together as a kit, because when one fails the other is usually close behind. Both are one-shot or safety devices that cut the heater circuit on overheat.
They test as simple continuity. The discipline that matters is treating a blown cut-off as a symptom rather than the disease. Something made the machine overheat, and nine times out of ten it was the venting.
3. Burned-out heating element
The element is a coiled resistance wire inside a metal housing on the back of the cabinet. It fails with age, from surges, or from running hot behind a choked vent.
Look for a visible break in the coil or scorching on the housing. A healthy Maytag element usually reads roughly 10 to 15 ohms. An open circuit confirms it has failed. Sagging coils that contact the housing produce constant heat instead of none, so check for that as well.
4. Failed cycling thermostat
The cycling thermostat switches the element on and off to maintain temperature through the cycle. When it fails open, the element never energises at all.
The symptom is inconsistent heat rather than complete absence: clothes come out warm but never actually dry, or the dryer heats for the opening part of the cycle and then goes cold.
5. Restricted airflow
Airflow sits behind most of the failures above. Lint compacts inside the duct, the exterior flap sticks shut, or a long run with several bends chokes the exhaust. Heat has nowhere to escape and the safety devices open exactly as intended.
Warning signs are a hot cabinet, a faint burning smell, and cycle times that have crept longer over months. Clearing the entire duct run is the fix, not simply emptying the lint trap.

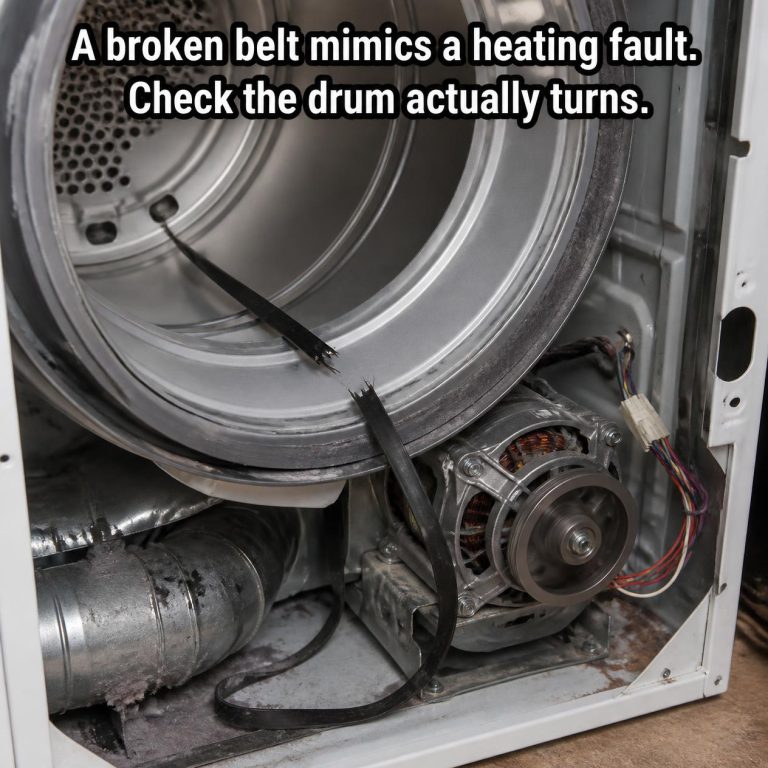

6. Belt and drum faults that mimic no heat
Worth ruling out on Maytag Bravos and Centennial models in particular. If the belt has snapped, the drum stops turning while the motor still runs and the timer still counts down. Laundry sits in one place against the heat and comes out barely dry, which is easily mistaken for a heating fault.
Open the door mid-cycle and check whether the drum is actually rotating before you start testing the heater circuit. It takes ten seconds and saves a lot of wasted effort.
Maytag Dryer Not Heating: is it worth repairing?
Thermostats are inexpensive and always worth replacing. A heating element is a mid-range repair and still sensible on a dryer under roughly eight to ten years old, and Maytag elements are among the easier ones to access. A failed timer or control board on an older machine is usually where replacement makes more sense than repair.
When to call a technician for a Maytag Dryer Not Heating
If the vent is clear and the breaker has been reset but the dryer still will not heat, the fault is a component that needs testing under power. That work involves line voltage and, on gas machines, a live fuel supply.
Denton Repair Services connects homeowners across Denton County with local appliance technicians, and you can arrange dryer repair in Denton, TX for gas and electric GE models. If the dryer smells hot or the cabinet is uncomfortable to touch, stop using it and treat it as an emergency appliance repair.
Our guide to appliance repair prices in Denton is worth a look first, along with the full range of appliance repair services.
For model-specific manuals, Maytag publishes its own product support documentation.
